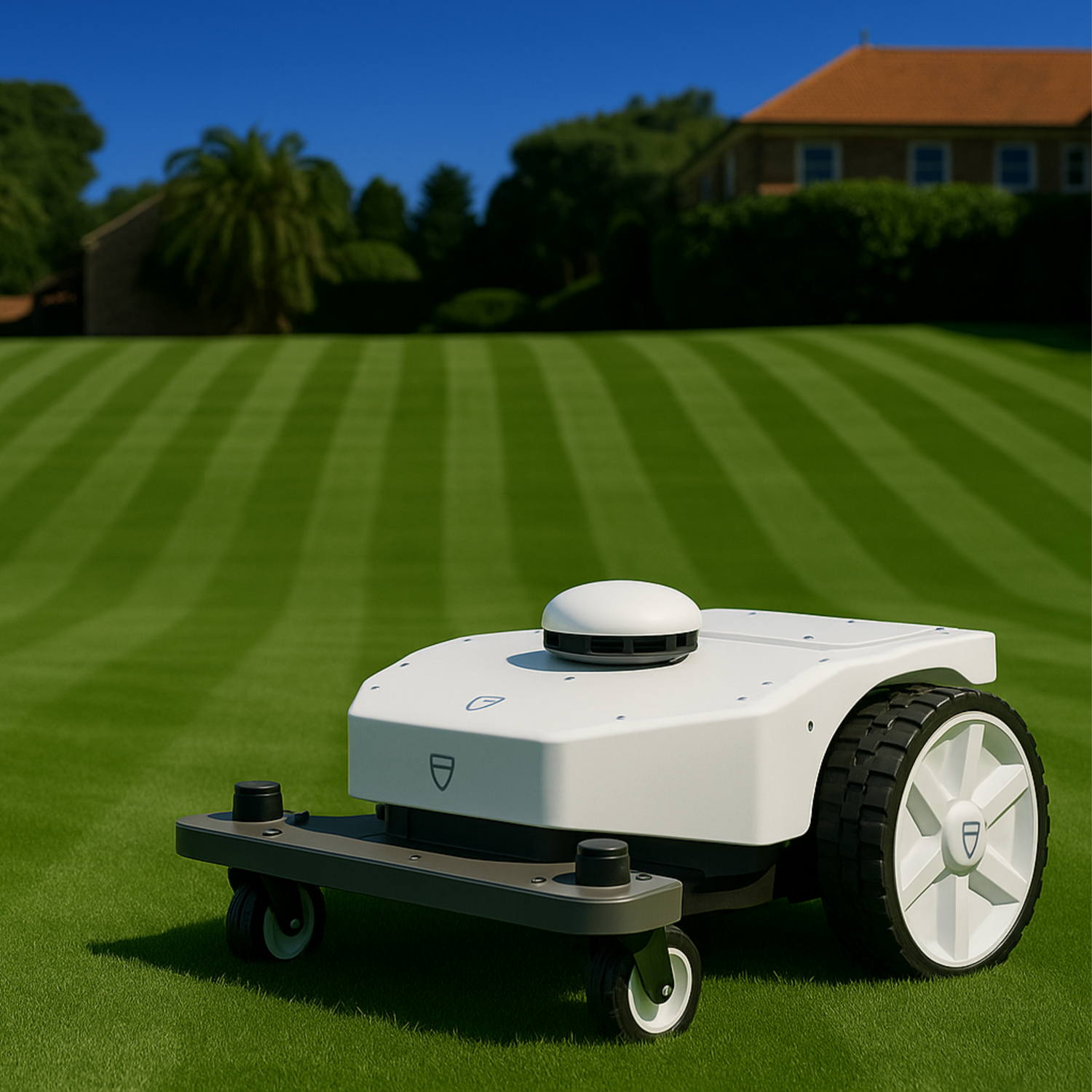

Pin-straight Lines | RTK + Vision
1 acre can take 20–30 min on a big zero-turn, ~35 min on a 42" ride-on, and 2.5 h with a 19" push. Robots can take hours per cycle, but they work while you don’t. Set Mon–Fri passes, come home to finished stripes.
Smooth ride. Protected cut.

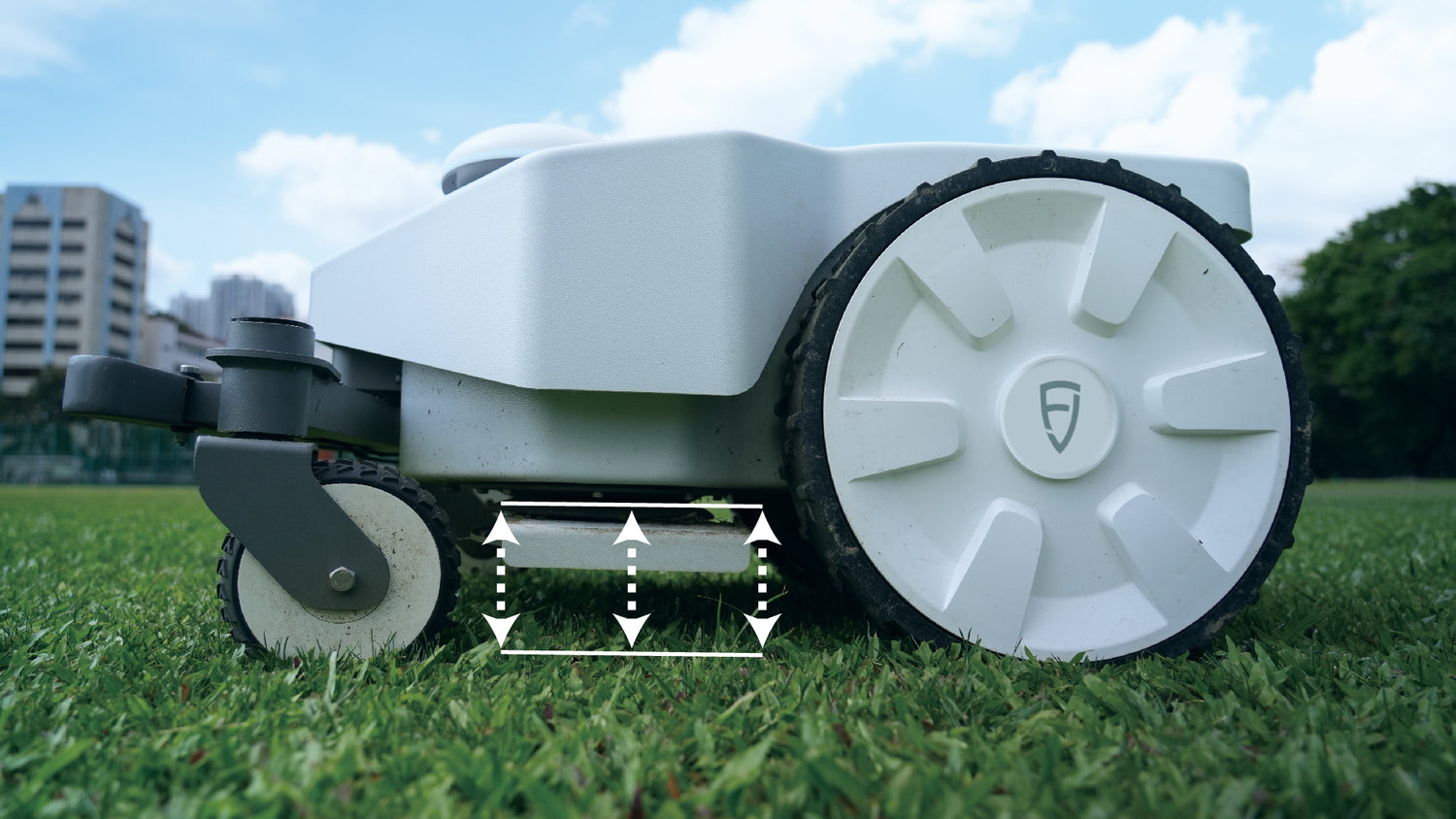

Suspension Chassis and Suspended Cutting Discs Close-up
- Front suspension chassis stabilises the deck on uneven ground.
- Suspension cutting discs auto-adapt to terrain to minimise scalp.
- Helps absorb bumps and protect the cutting system for a cleaner finish.
Keep presentation sharp across seasons.

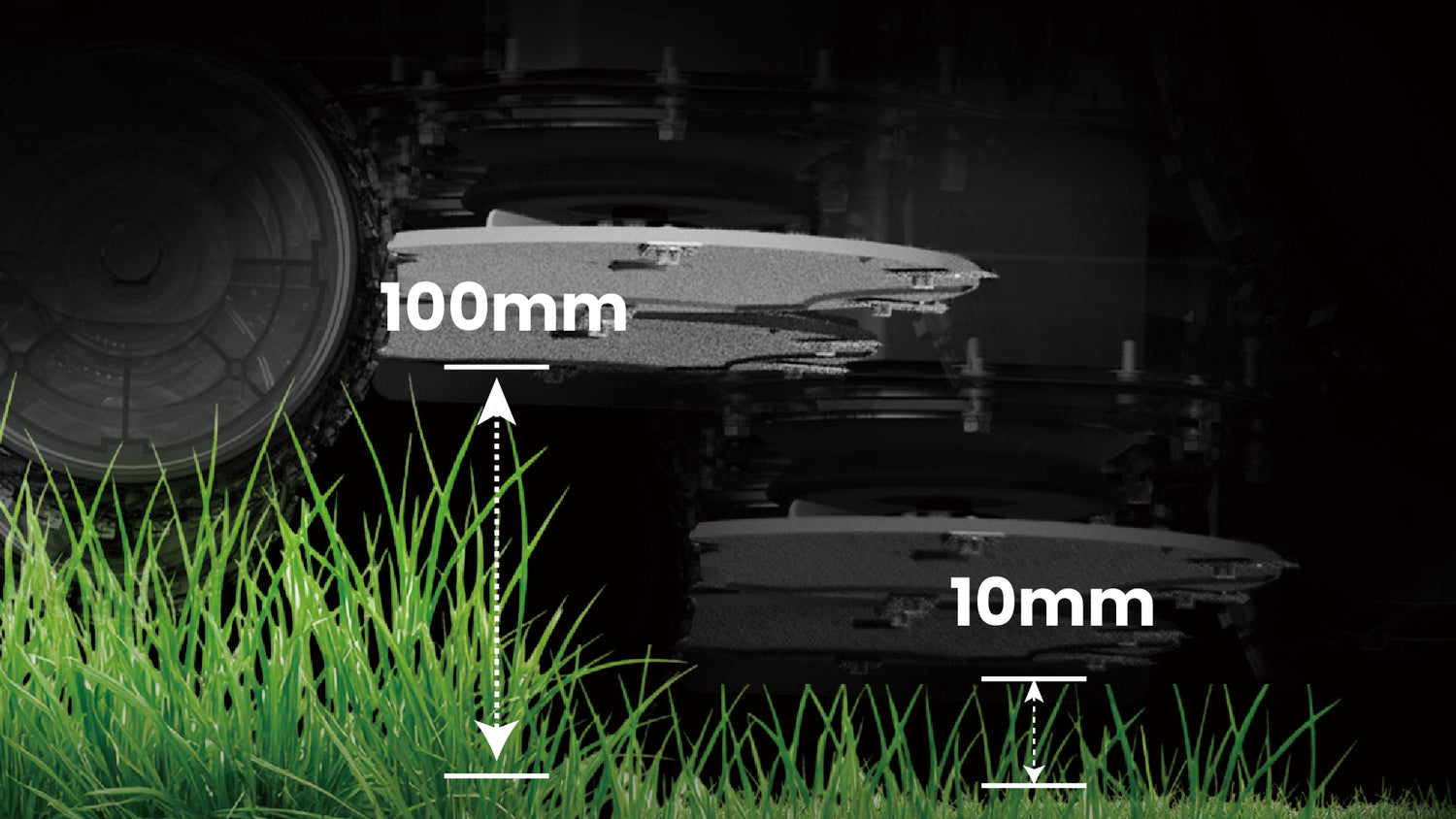

Greens-low to Rough-ready
- 10–100 mm adjustable range fits fairways, sports fields, and lawns.
- 520 mm deck (two discs) balances precision and throughput.
runs an “Edge pass” after the main stripes

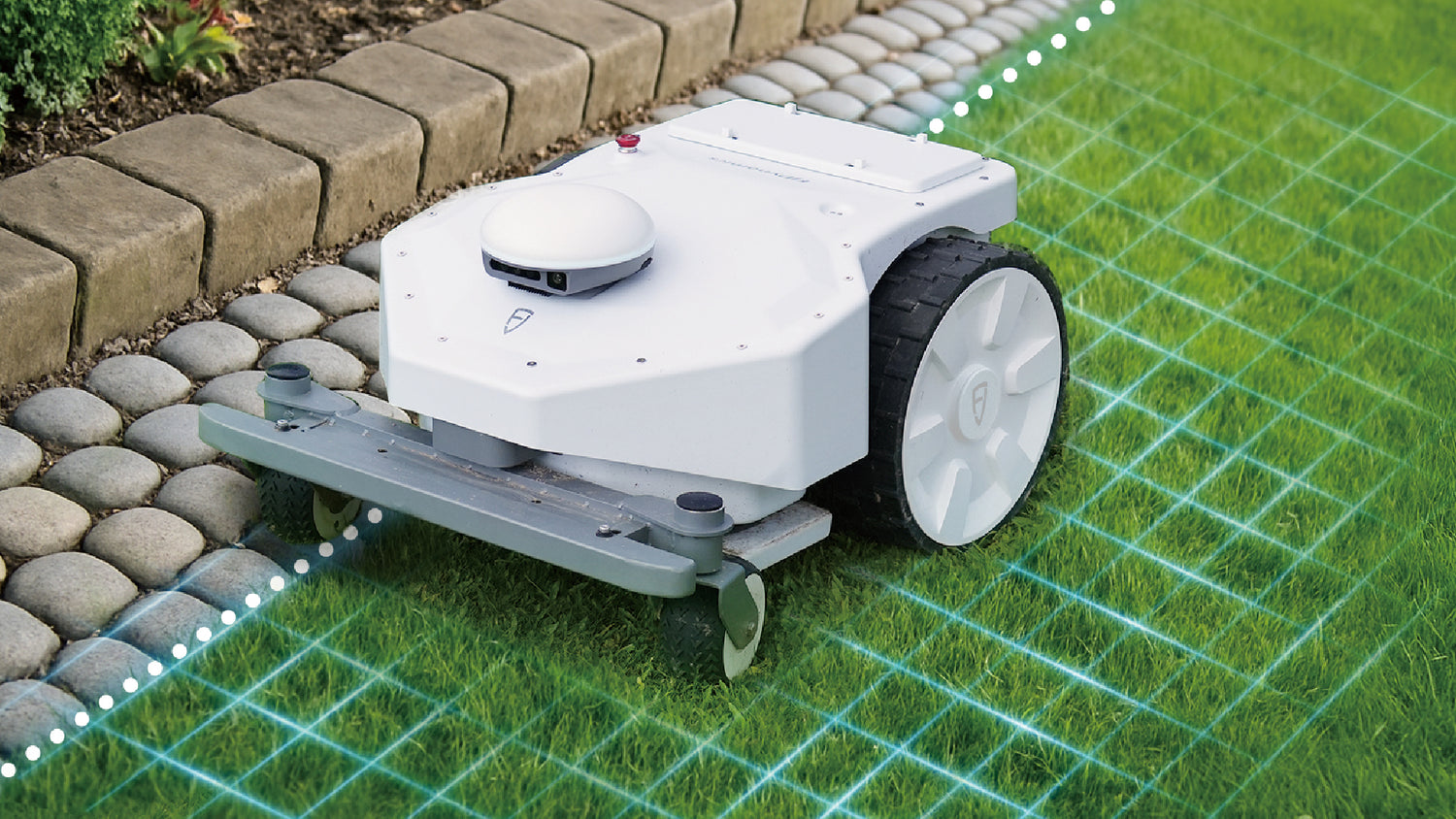

Boundary Trim & Clean Edges | Wire-free
- Edge pass job step: add 1–2 perimeter passes per zone for a neat border.
- Adjustable offset: set a safe distance from hard edges to protect blades & edging.
- Vision assist: holds the line near fences/hedges where GNSS alone can drift.
24/7 runtime, your way

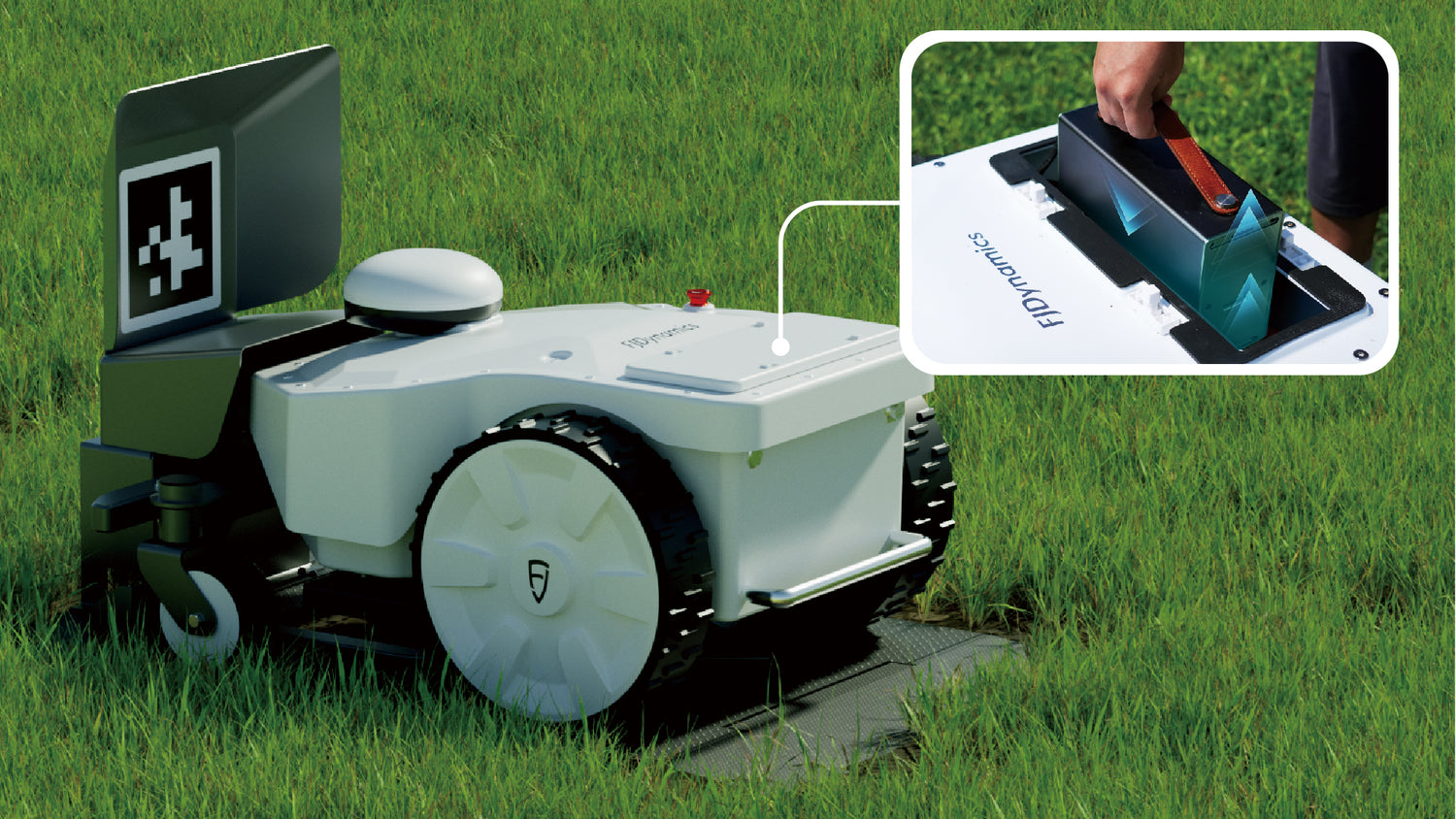

Fast-swap Battery (Auto-charge Optional)
- Choose fast battery swapping for continuous mowing.
- Or go auto-charging for fully unmanned day-to-day runs.
- With swapping, FRX covers up to 96,000 m² in 3 days (continuous operation).
Keeps busy sites tidy without babysitting.

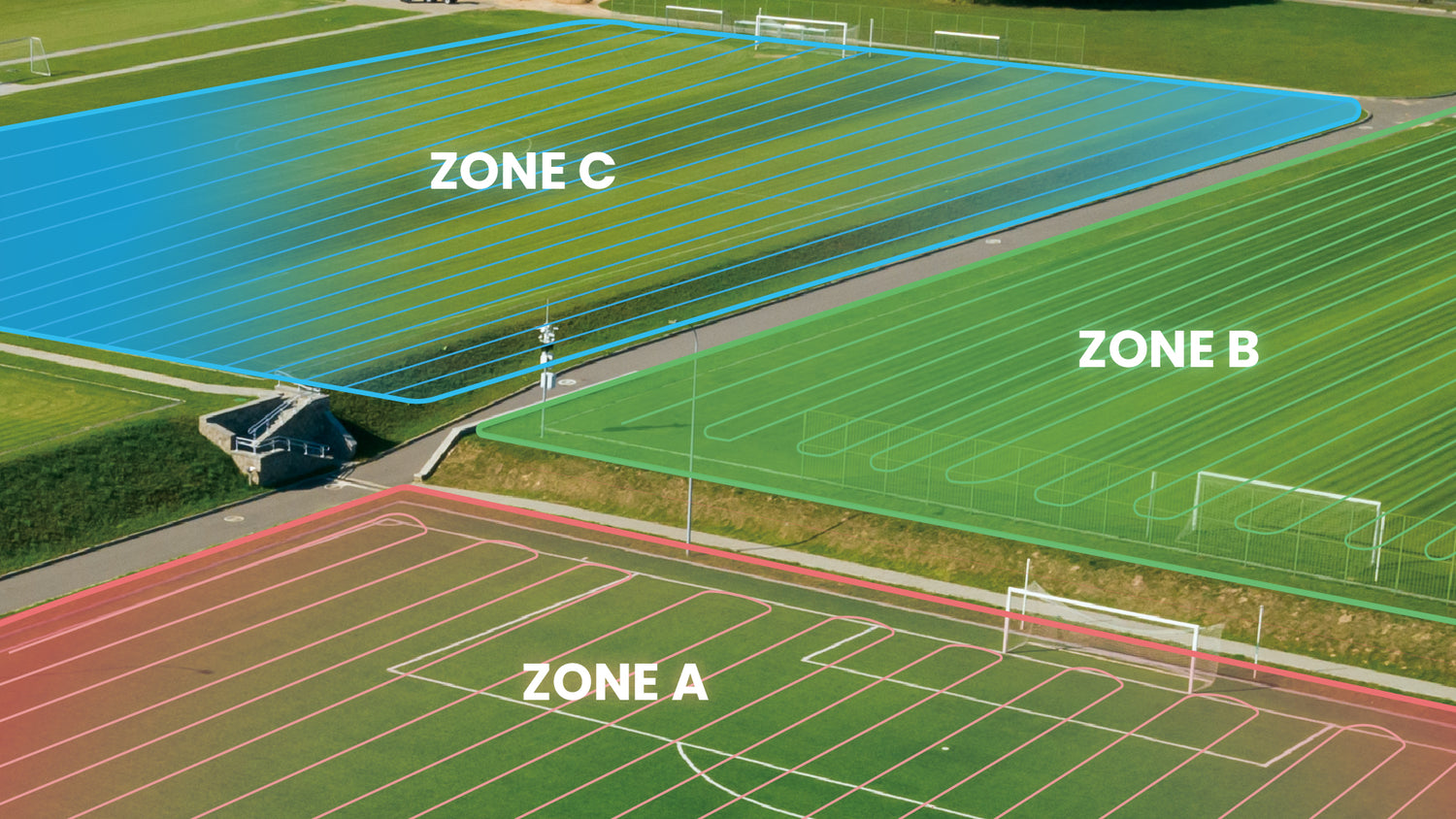

One App, Many Areas
- Create multiple fields/zones and send FRX to the next one automatically.
- Scale up with cloud maps + fleet control when you add units.
Continuous mowing help catch up after rain.

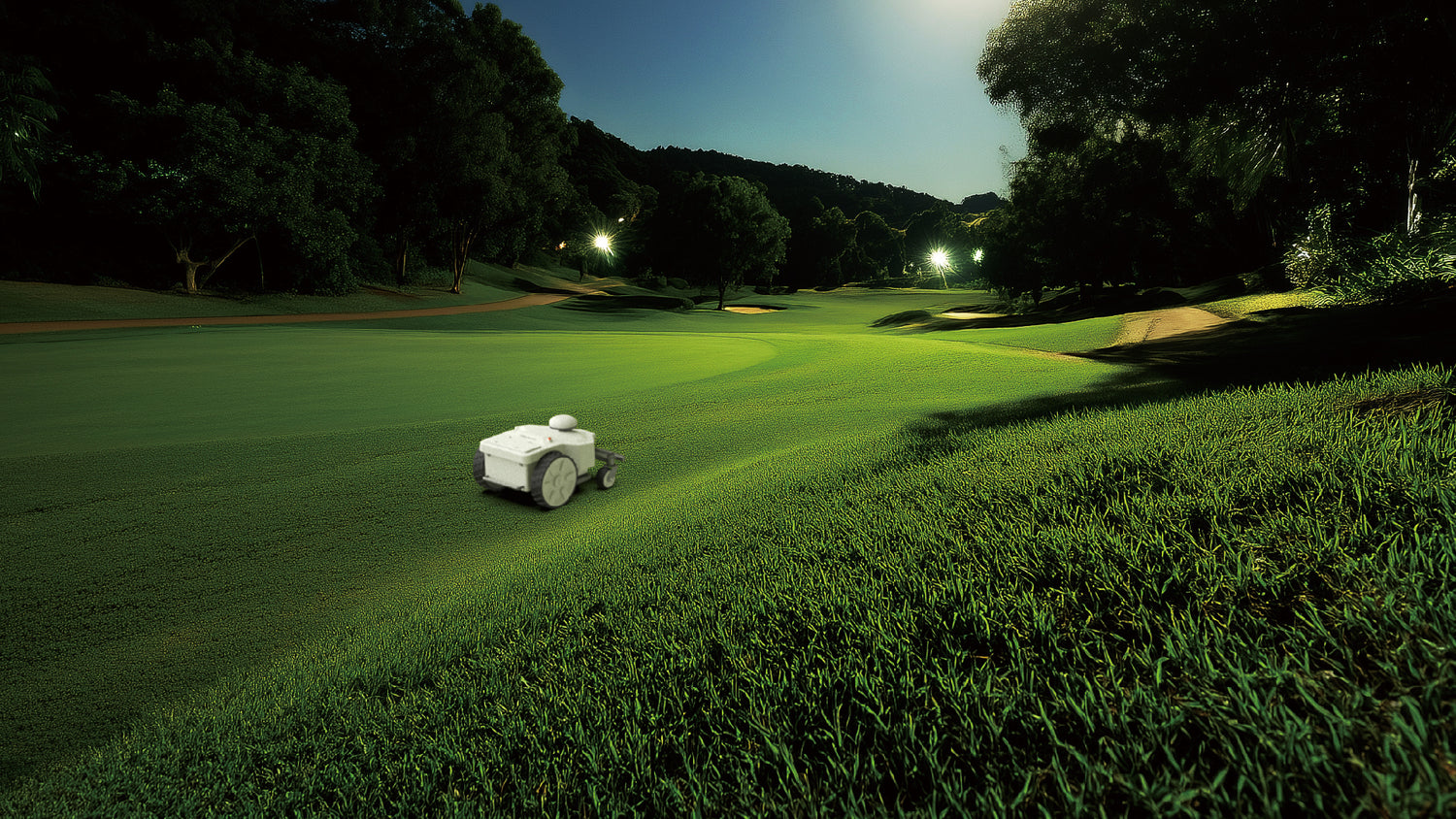

Free Your Days. Mow at Night.
- Night-quiet operation keeps fields free for play.

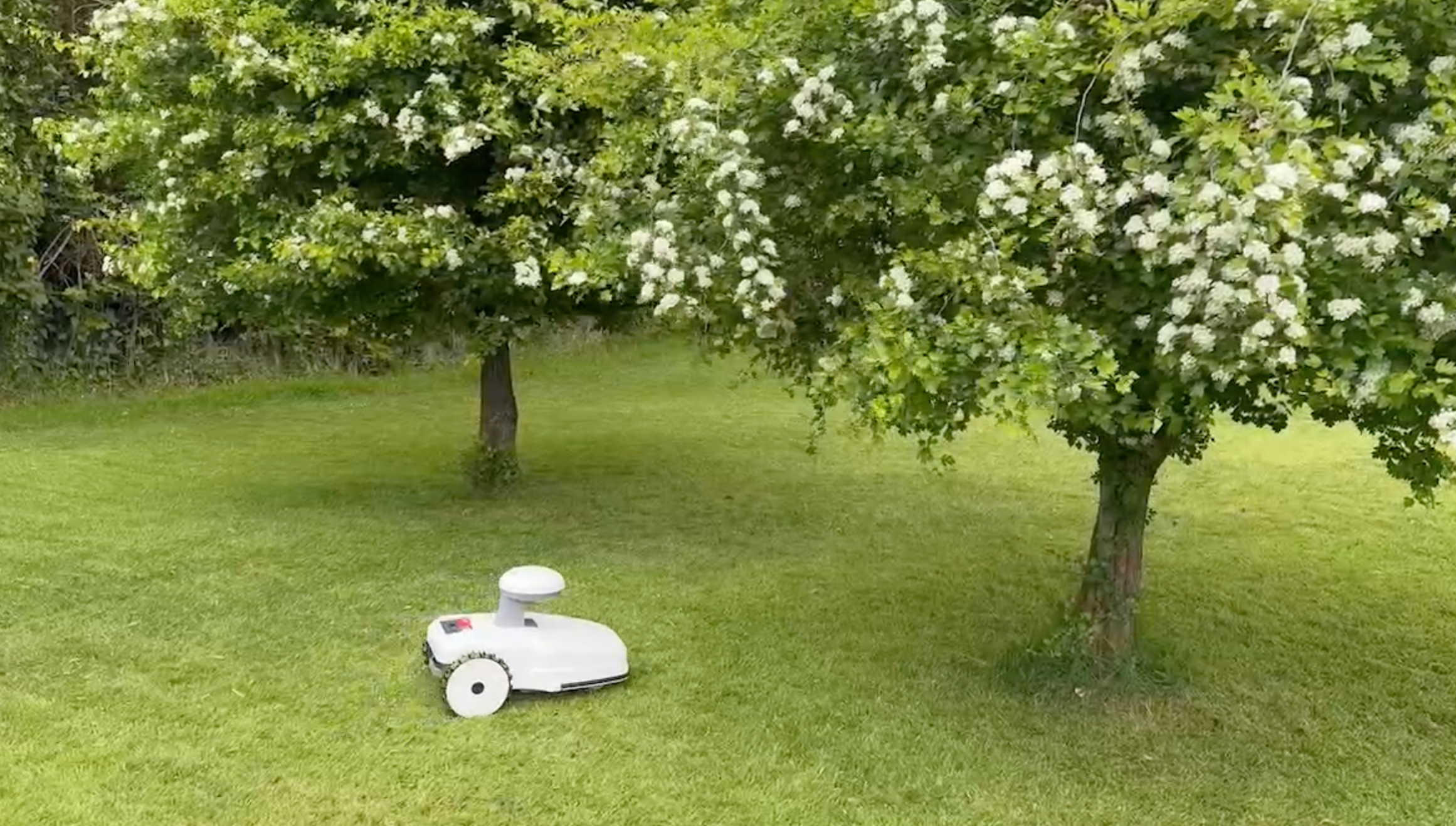

- RTK + Vision holds straight lines even under trees/at dusk.
Keep schedules rolling through the wet.

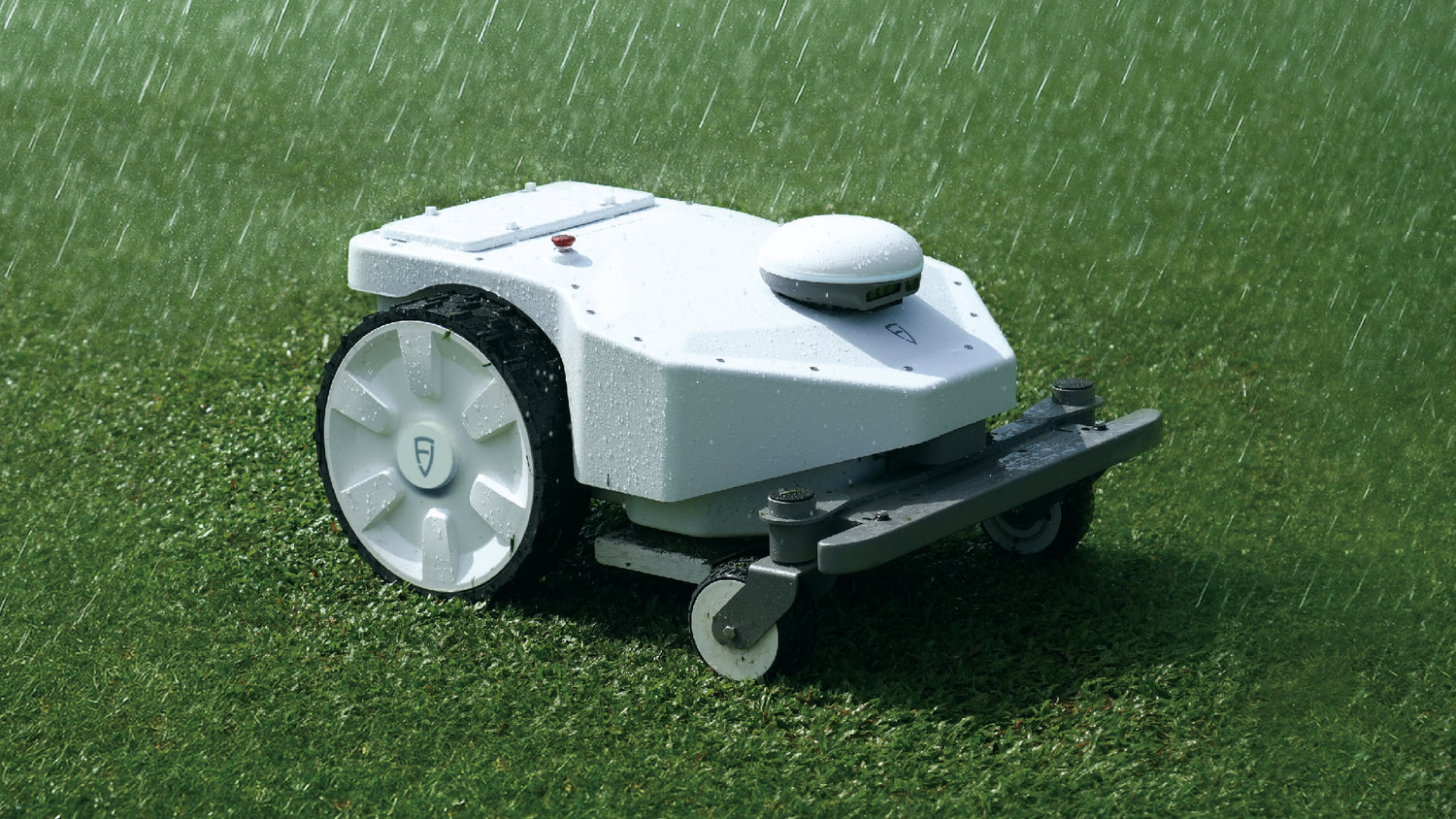

Hose-down simple, rain-ready
- IPX5 water resistance on the mower.
- Designed for rainy-day operation and easy cleaning.

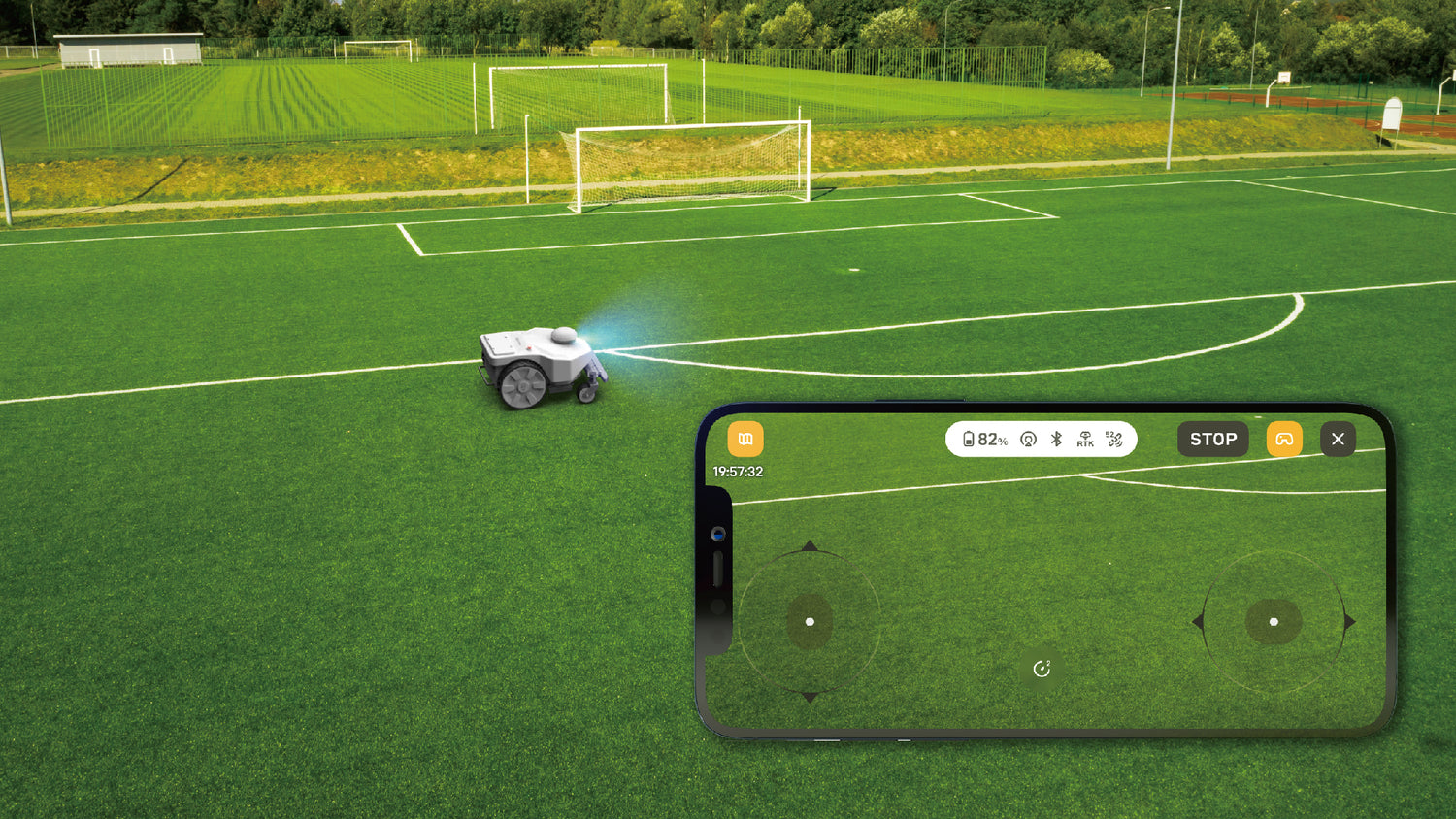

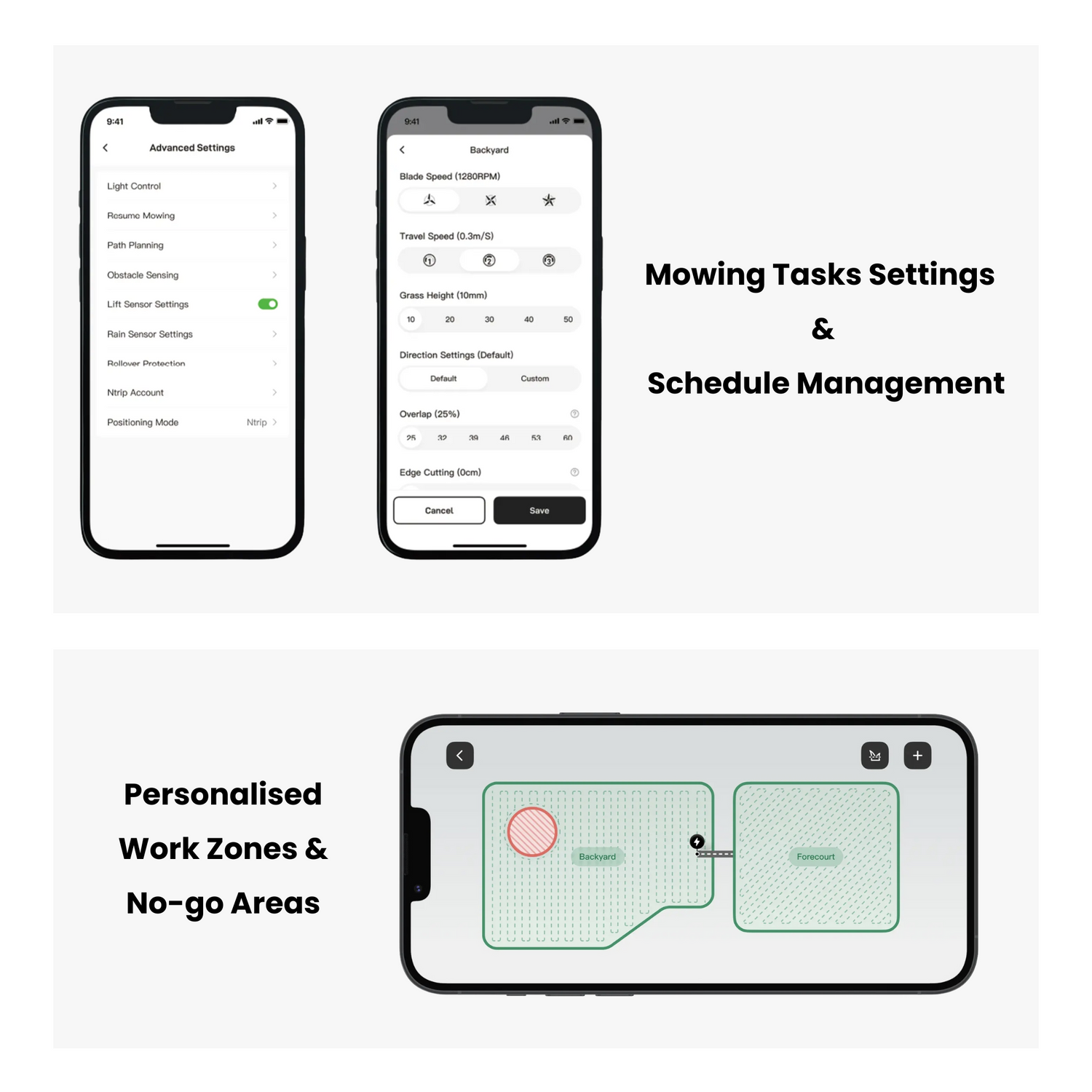

Monitor & control from anywhere
Remote Check-ins from Your Phone
- App control: start/stop, adjust height and paths.
- Image feed to check the turf without being on-site.

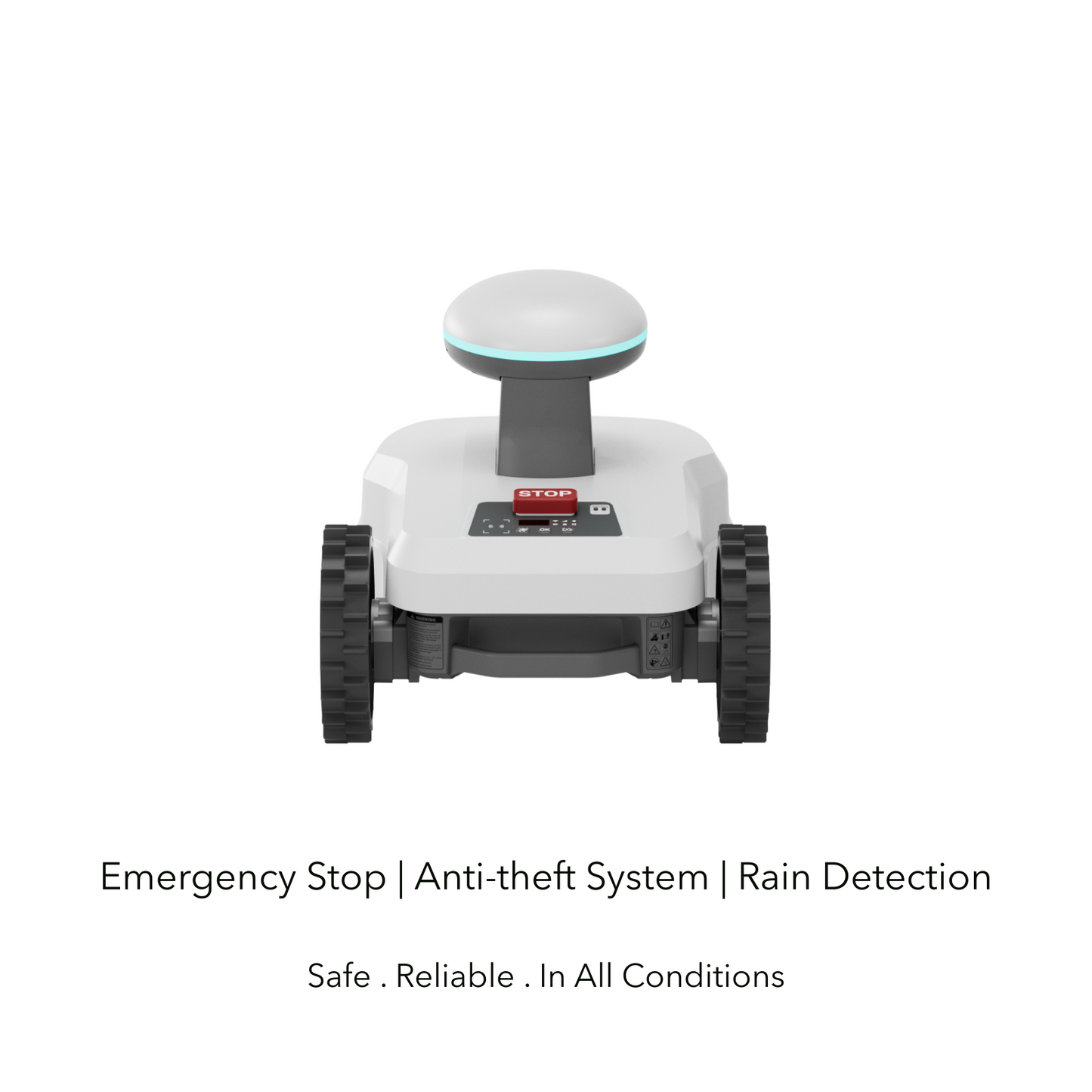

- GPS anti-theft option for peace of mind.
Multiply output. Keep quality.

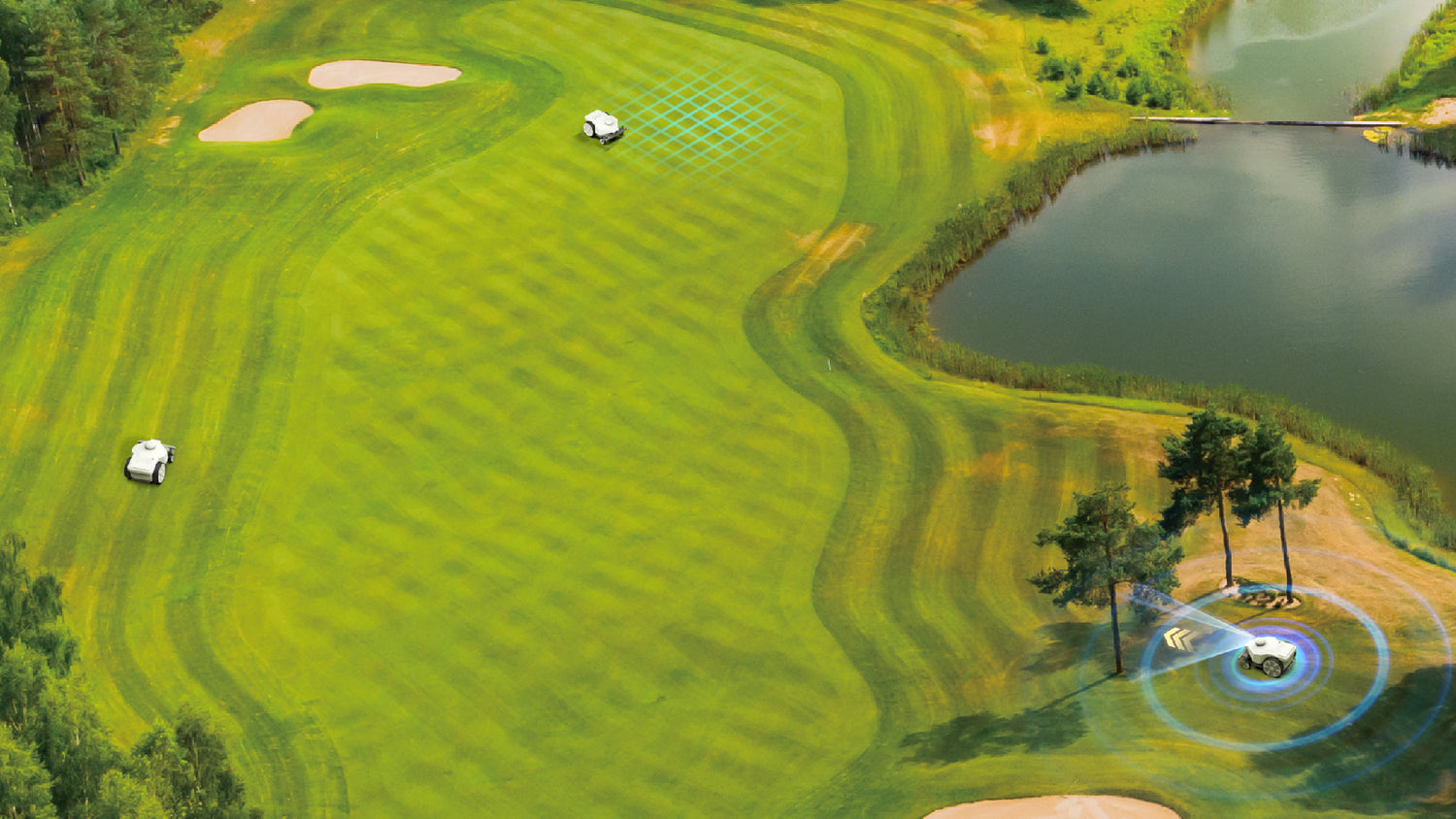

Fleet Mode for Big Sites
- Fleet Management: map once, run many.
- Cloud maps coordinate multiple mowers across multi-field campuses.
- Consistent cut angles across the site.
Talk to Pro Sales

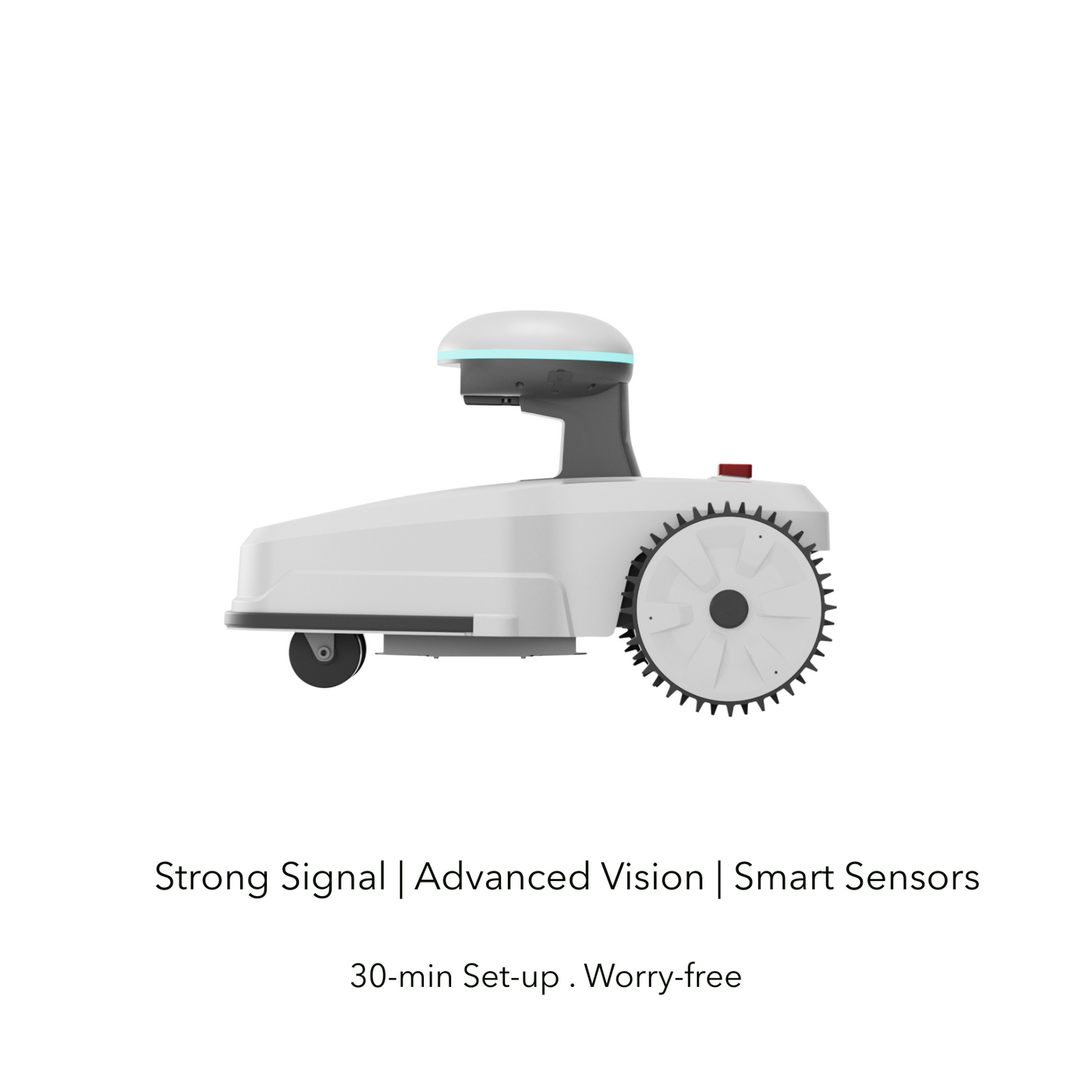

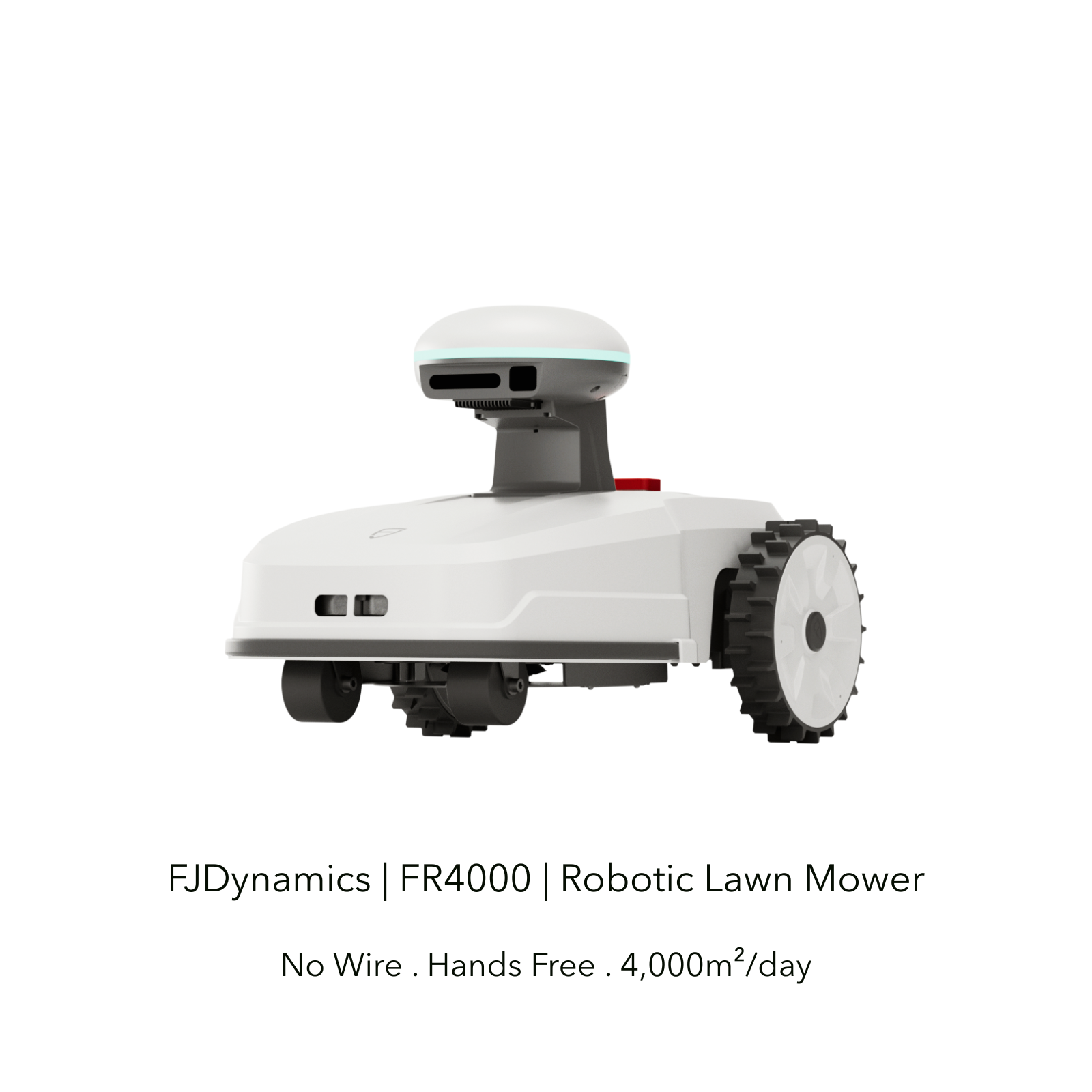

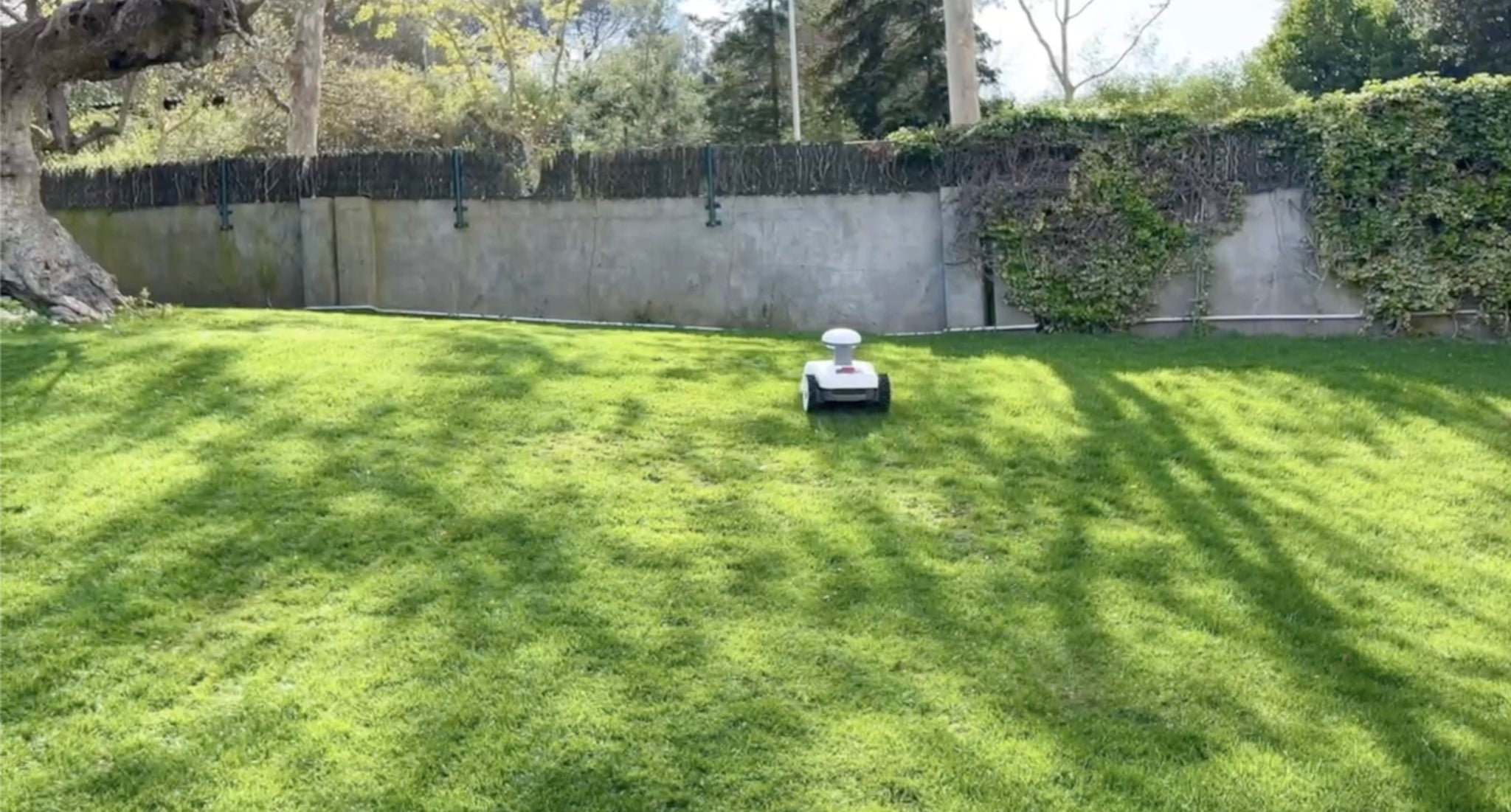

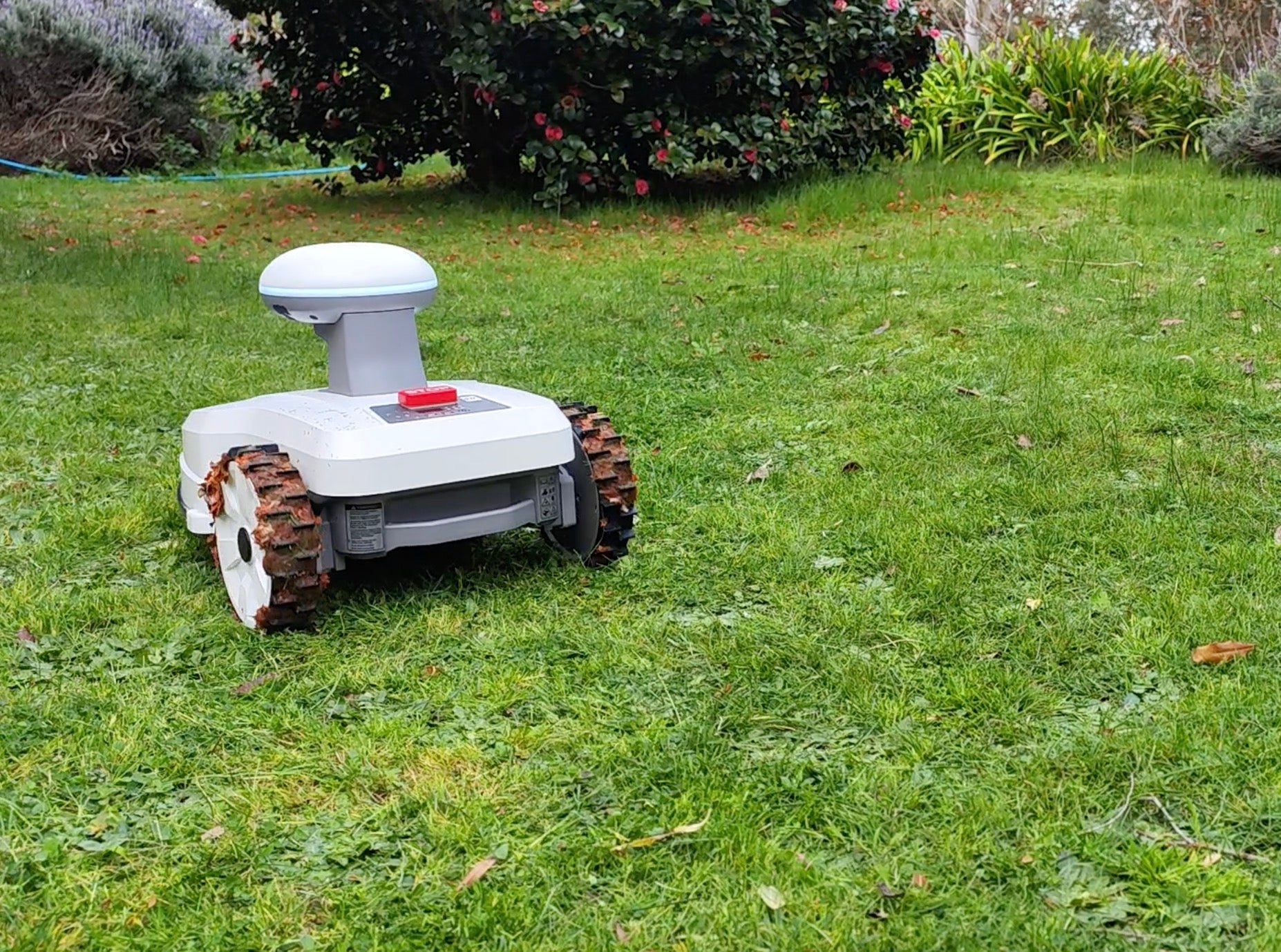

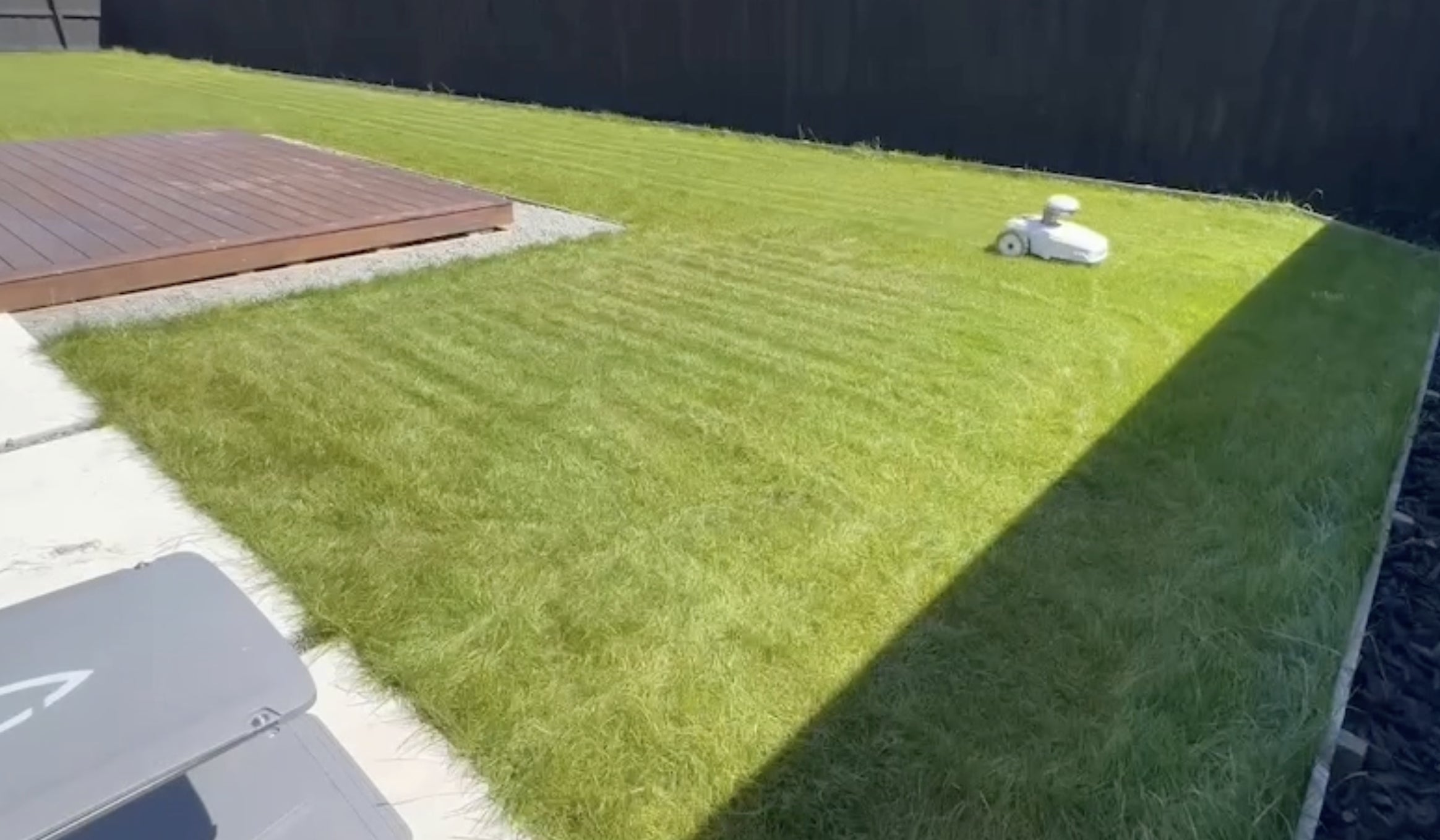

FR4000 Residential Kit | 2,000-5,000 m²

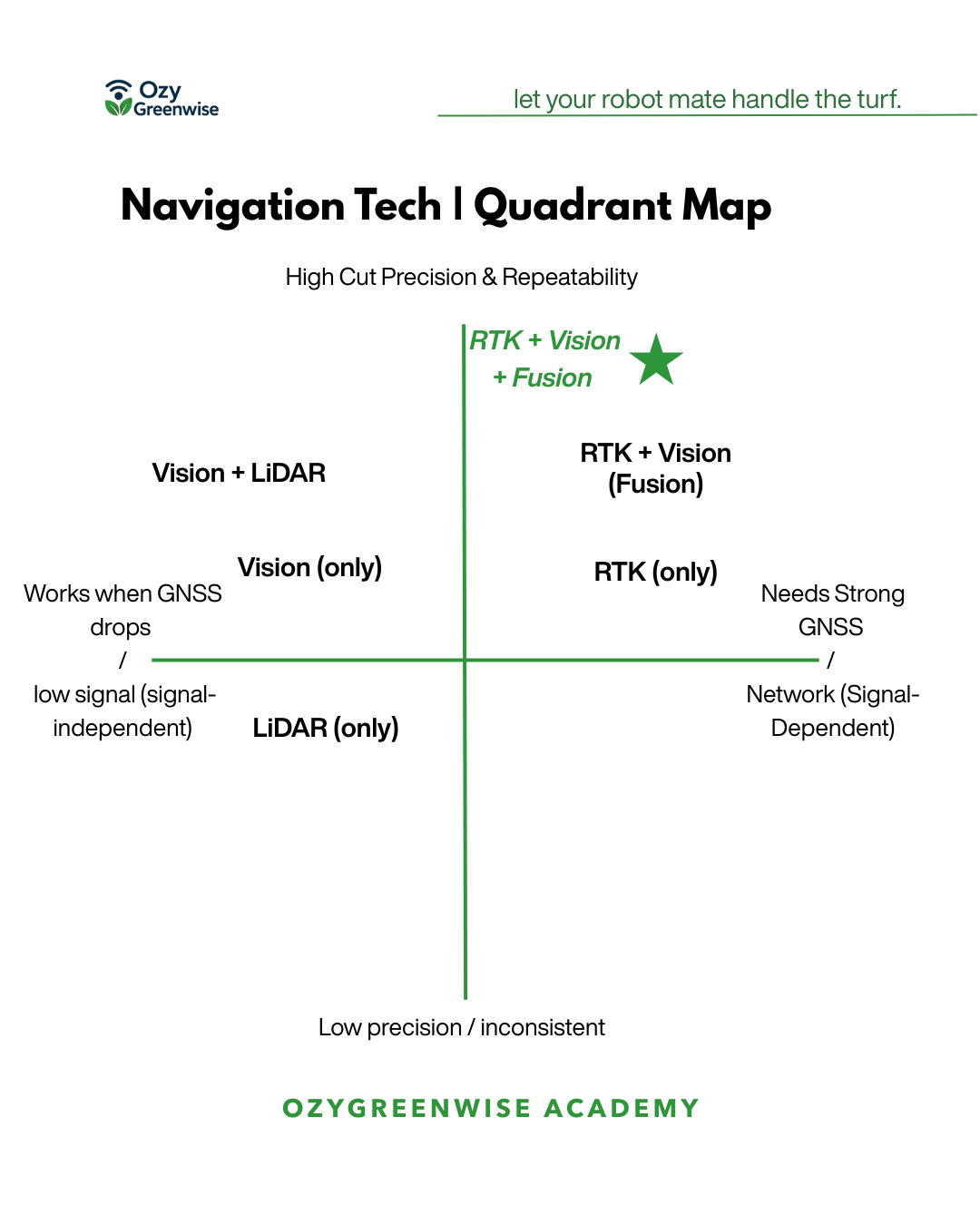

Why Tech Stack Matters
- Pin-sharp accuracy: RTK + Vision holds a 2.5 cm line under trees, along fences, and around gardens.
- No boundary wires: Set virtual zones, no-mow areas, and multi-zones from the app.
- Healthier turf, less hassle: Frequent micro-trims = denser grass, fewer weeds, natural fertiliser from micro-clippings.
How to Set Up / Install

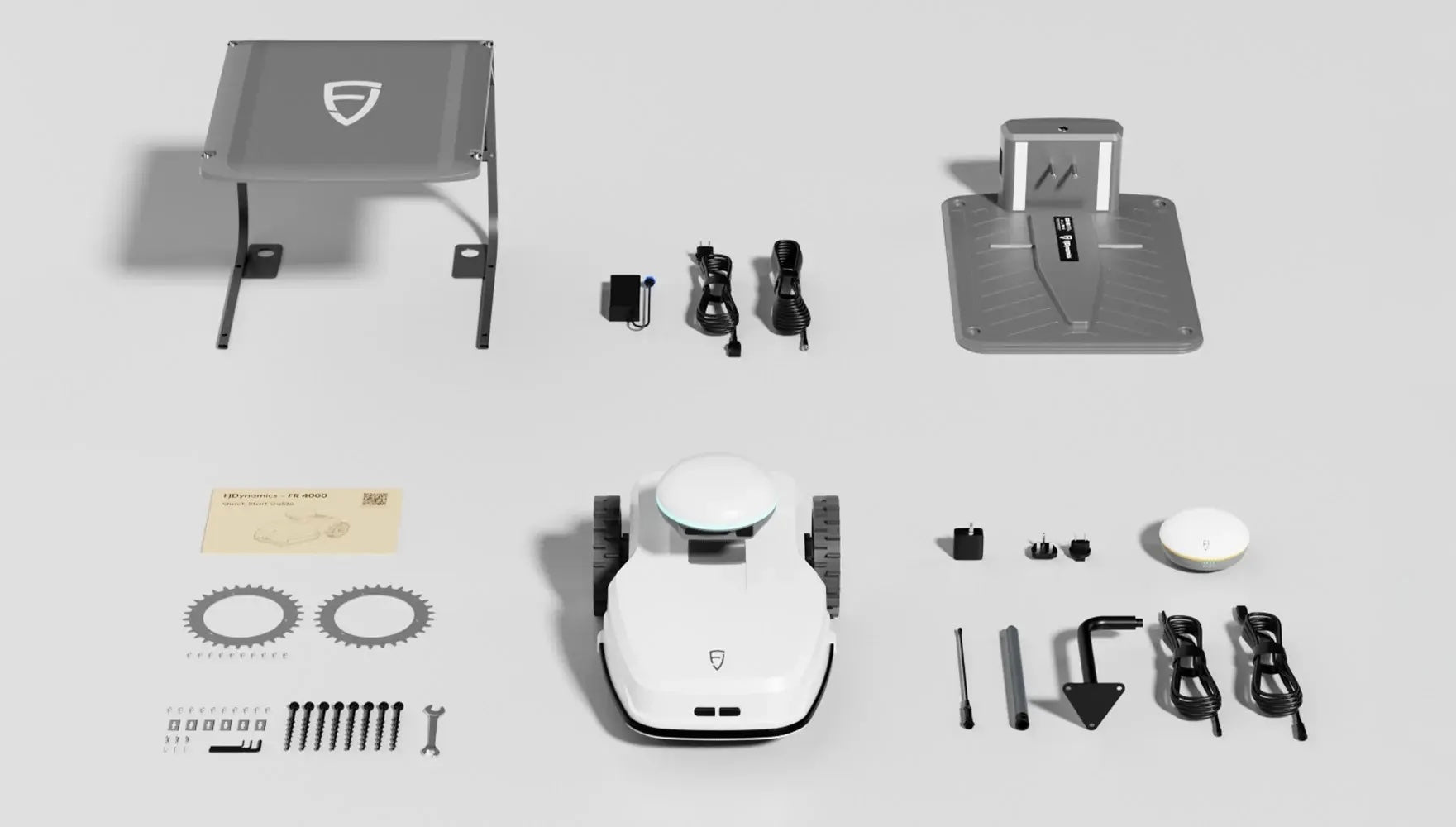

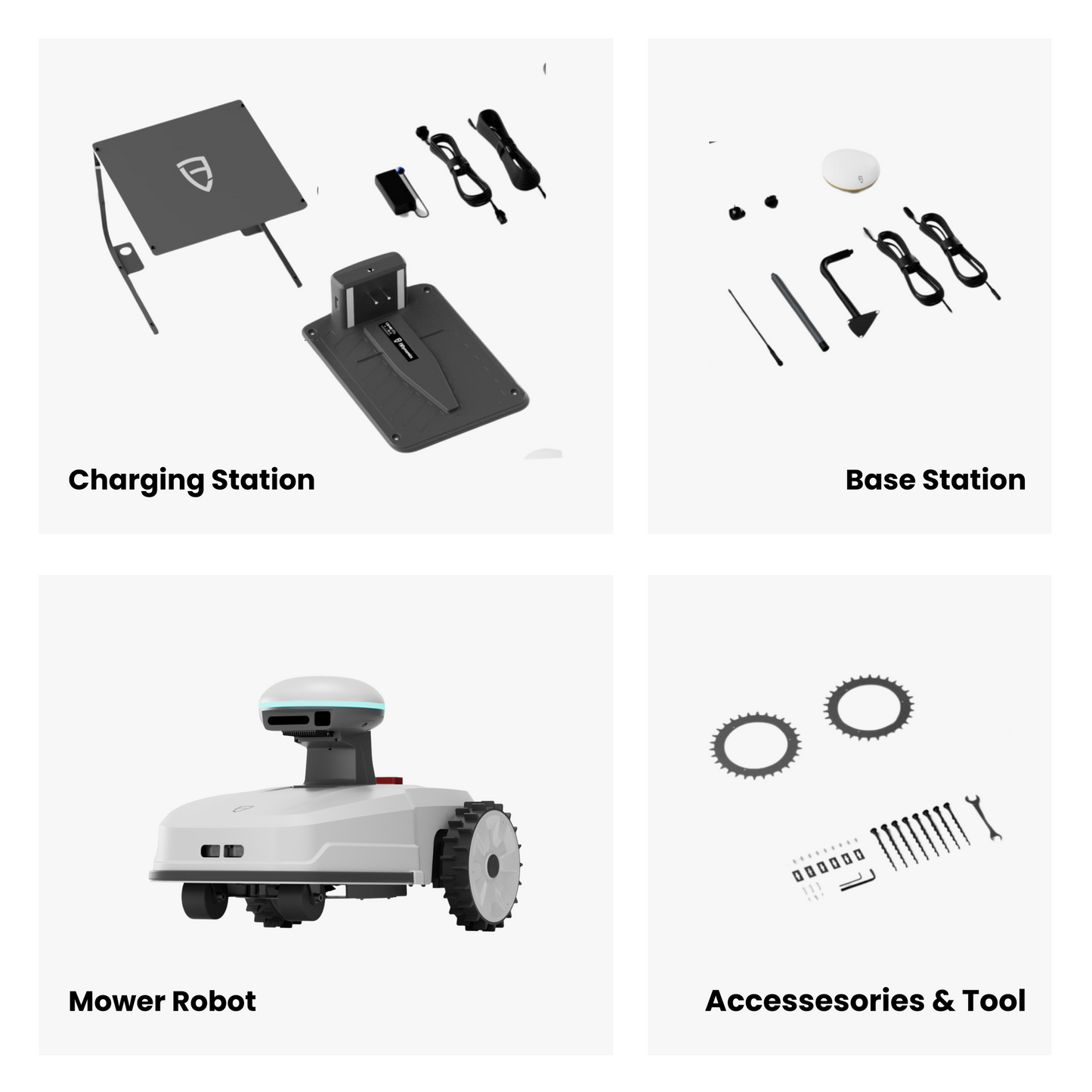

- Set up the Mower, charge the Dock
- Download the App, FJDlandscaping
- Connect the App with Mower & Ntrip (positioning signal) via Wi-Fi & 4G
- Map your lawn in the app (zones, no-mow areas, mowing preferences)
- Mow on a schedule you set up; the mower auto-returns to charge and resumes where it left off
- Returns to charge if rains

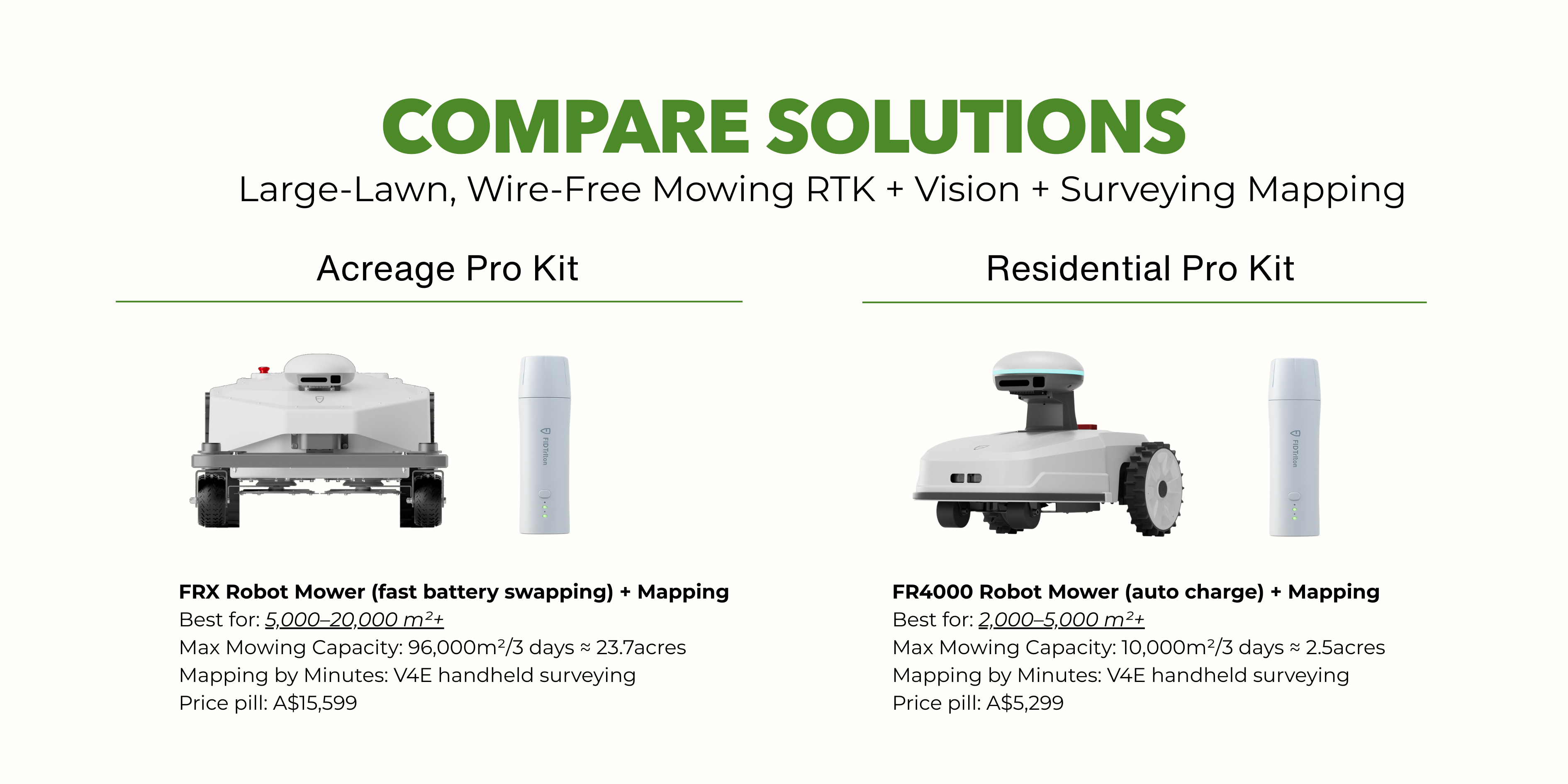

What’s the maximum mowing capacity?
FRX: up to 96,000 m² in 3 days.
FR4000: up to 10,000 m² in 3 days.
What’s the battery capacity and charging time?
FV2000:1 KWh; up to 320 min runtime per charge/8,000m²; ~240 min recharge.
FR4000: 190 Wh; up to 180 min runtime; ~120 min recharge.
Can I set mowing times? Will it stop as scheduled?
Yes. In the app you can set schedules, blade rotational speed, travel speed, grass height, path and spacing and the mower will auto-charge when battery low or rains.
How does RTK work, and what if signal is weak (e.g., under a roof/pergola or heavy canopy)?
Both models receive RTK corrections via NTRIP over 4G/Wi-Fi. Bluetooth is used for on-site control/connection.
As part of the quick yard check, confirm 4G coverage at your site and place the charger where the signal is reliable and flat.
If RTK drops out temporarily, the mower continues using its onboard vision to maintain boundary recognition and pathing until RTK returns (FV2000: RGB vision; FR4000: stereo + RGB vision)
For heavy canopy or split lawns, you can also install the local base station (part of the whole mower package) as the RTK corrections receiver instead of using Ntrip service, on top of roof or open space.
You can also mark covered areas as no-go zones.
How wide is the cutting path and what blades does it use?
FRX: 520 mm cutting width, 10–100 mm height range, and 12 pivoting stainless-steel blades
FR4000: 260 mm cutting width, 20–60 mm height range, and 6 pivoting stainless-steel blades
Every 6-8 weeks to replace the blades on 3 times a week frequency (Both models.)
How close does it mow to walls and tree trunks?
The mowers use boundary recognition and real-time obstacle detection for tidy finishes.
For vertical walls or tight tree bases you may keep a small safety offset while create the maps. And engage with the occasional manual touch-ups.
What is “Drop & Run,” and how do I use it?
“Drop & Run” lets you start mowing jobs away from the charging station—carry the mower to a second area, map the zone, and run the task on arrival.
It’s ideal for verges, split lawns, or quick demo runs.
